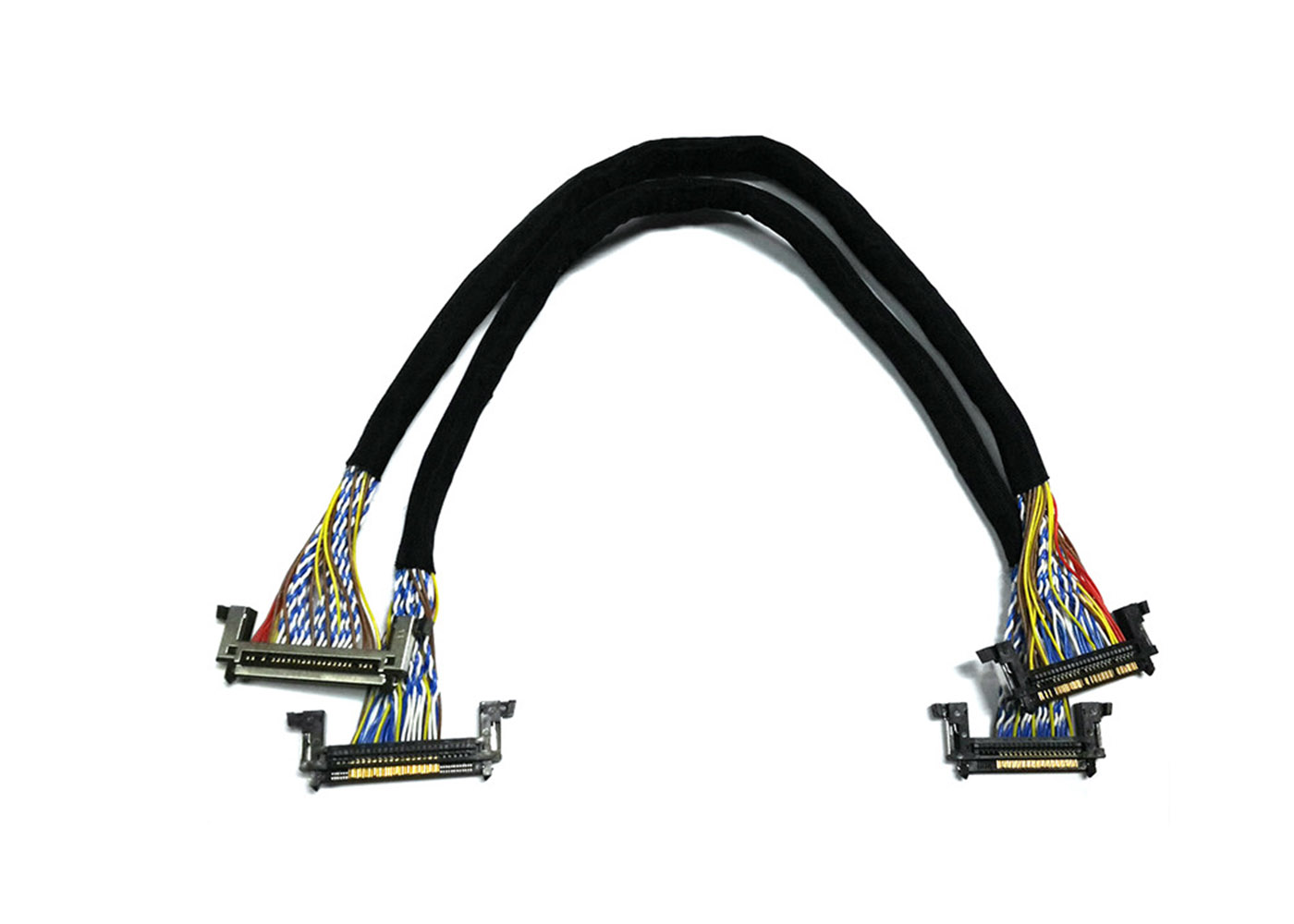

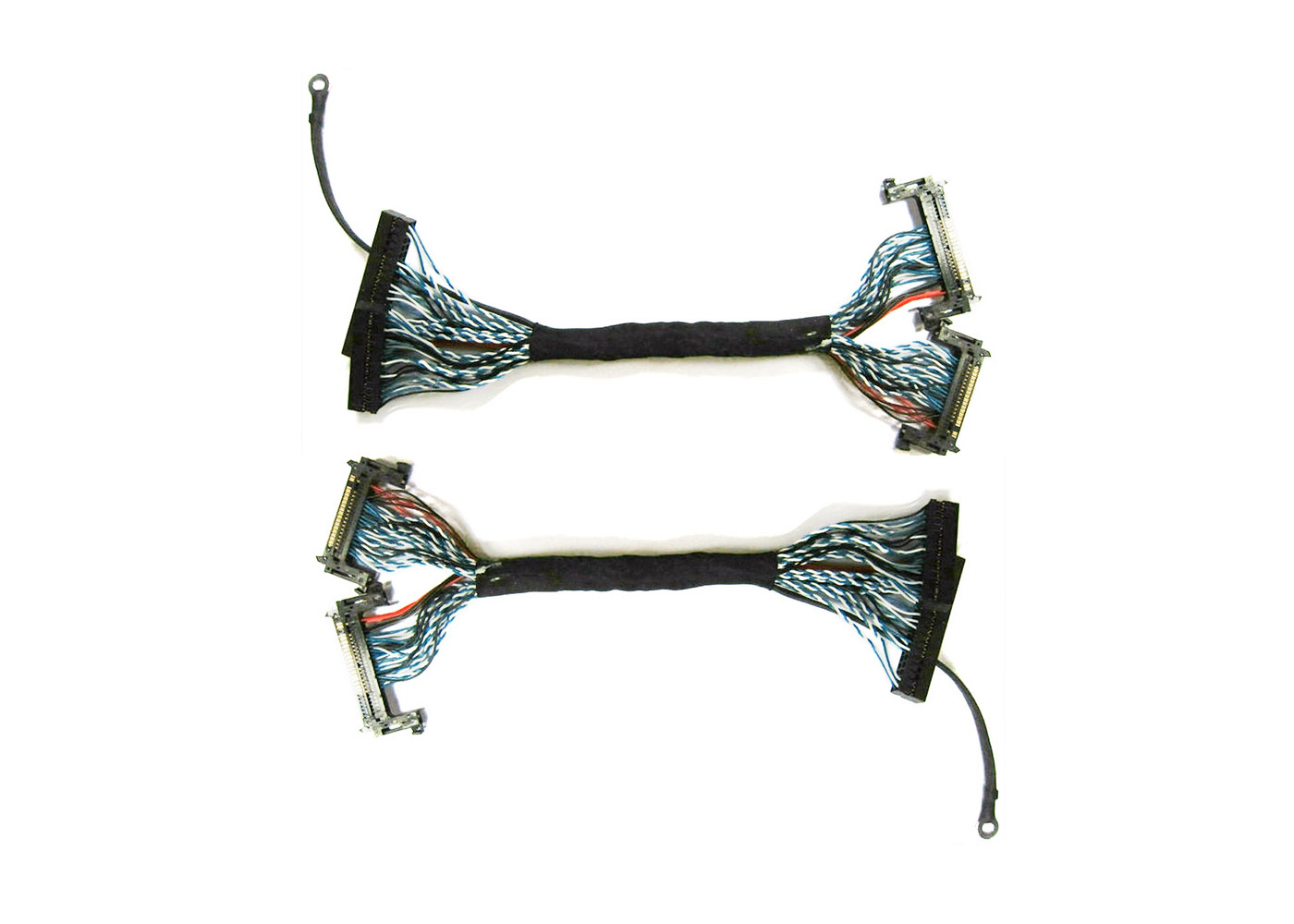

FI-RE51P Screen LVDS Cable FI-RE41P Screen Line LED Screen Cable LVDS 4K HD Screen Cable
Product introduction
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L008 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire | UL1571 28AWG or Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | FI-RE51P to FI-RE41P 2.0-30P or Customized |
| Length | 300mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
lvds connector definition
LVDS connectors, also known as RS-644 bus interface bai du, is a data transmission and interface technology that appeared only in the 1990s. LVDS is a low voltage difference dao sub-signal. The core of this technology is to use a very low voltage swing to transmit data at a high speed differential, which can achieve point-to-point or point-to-multipoint connection, with low power consumption, low bit error rate, low The characteristics of crosstalk and low radiation, the transmission medium can be a copper PCB connection, or a balanced cable. LVDS is more and more widely used in systems that require high signal integrity, low jitter, and common model performance. At present, the popular LVDS technical specifications have two standards: one is the ANSI/TIA/EIA-644 standard of TIA/EIA (Telecommunications Industry Alliance/Electronic Industry Alliance), and the other is the IEEE 1596.3 standard.
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different connector/length/pitch/pins etc., if you need, we can accept customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can create your own Lvds cable by calling our sales department.
Conductor Sizes
We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.
Conductor Colors
Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.
Stranding Sizes
Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.
Conductor Insulation
The first protection in any cable is the conductor’s insulation. Our wire and cable extrusion capabilities include a wide range of materials to match your requirements for flexibility, abrasion resistance and environmental conditions. We use the range from basic PVC, PE or PP. We also use insulating materials such as natural rubber, PU, TPE, PTFE (Teflon®) and silicone.
Product Tags:
|
|

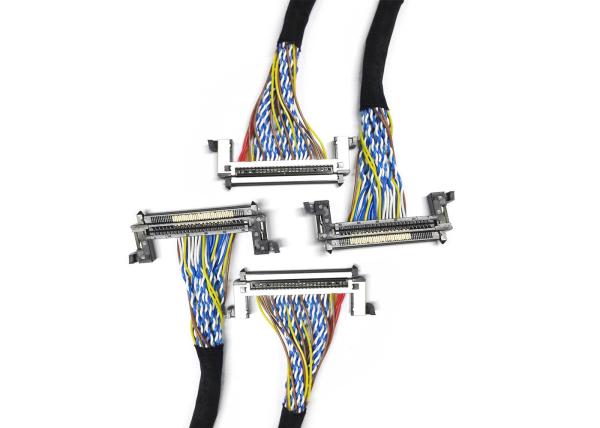

UL1571 28AWG LVDS Cable Images
|
